Alps Alpine and Furuno Develop GNSS Module – Realizing High-Accuracy Vehicle Positioning to Within 50cm Without Correction Data

UMSZ6 Series: Lane-Level Vehicle Positioning Contributing to Autonomous Driving Advancement

Munich, Germany, November 23, 2021 – Alps Alpine and Furuno Electric Co., Ltd. have jointly developed the UMSZ6 Series GNSS¹ Module realizing high-accuracy positioning to within 50 centimeters without correction data, a world-first for automotive applications. Even on general roads (approx. three meters wide), the module reliably enables vehicle positioning down to the lane level, as is required of various V2X² applications, thereby contributing to greater sophistication of autonomous driving functions. With a view to undertaking sales promotion activities worldwide, efforts will be made to enhance the degree of completion of the product through performance evaluations involving demonstration testing. We aim for a start to mass production in 2023.

Technological innovation is gathering momentum within the automotive CASE domains (Connected, Autonomous, Shared & Services, Electric). In the autonomous driving domain, a growing number of vehicles on the road have Level 2 automated driving capability, allowing them to autonomously follow the vehicle in front under certain conditions while staying in their lane. Cars capable of Level 3 automated driving, where the system carries out all driving tasks but under restricted conditions, such as during expressway or low-speed driving, have also recently been developed. Some are already on the market. However, the spread of Level 3 autonomous vehicles and further advancements in autonomous driving functionality will depend on the availability of vehicle positioning that is more user-friendly and even more accurate.

The UMSZ6 Series GNSS Module jointly developed by Alps Alpine and Furuno realizes high-accuracy vehicle positioning to within 50 centimeters even without having to use position correction data, a world-first for automotive applications. This is achieved using a multi-frequency GNSS receiver chip based on Furuno’s Extended Carrier Aiding³ technology. Running costs associated with RTK⁴ base stations, correction data receiving, and correction data use are no longer needed, maximizing cost performance, while reliable vehicle positioning down to the lane level is possible even on general roads (approx. three meters wide). Alps Alpine expertise in module creation accumulated over many years in the automotive business was applied to realize compact dimensions of 17.8 × 18.0 × 3.11mm while conforming to automotive grade, contributing to greater freedom for customers in end-product design.

Under the joint development, Furuno has developed and supplies an original multi-frequency GNSS receiver chip – eRideOPUS 9 (model ePV9000B) – and algorithm. Alps Alpine is using the chip before anyone else to create and commercialize the UMSZ6 Series GNSS Module and will carry out evaluations within a real-car environment to assess performance and interoperability with V2X and other communication modules, and pursue sales promotion within the automotive market.

Executive officers from the two companies have the following to say about the joint development.

Hideo Izumi, Vice President, Device Business, Alps Alpine Co., Ltd.: “Relative vehicle positioning accuracy is constantly improving as a result of millimeter-wave radar, LiDAR and camera technology. Achieving absolute position accuracy down to the lane level is essential for both V2X applications and genuine Level 3 automated driving, but system-related costs associated with RTK technology have been an obstacle. Getting around this with a multi-frequency GNSS receiver chip based on Furuno’s Extended Carrier Aiding technology, which realizes high-accuracy vehicle positioning to within 50 centimeters without correction data, will likely prove to be a breakthrough in V2X and advanced autonomous driving technology.”

Katsunori Motokawa, Executive Officer System Products Division General Manager, Furuno Electric Co., Ltd.: “Autonomous driving has made rapid progress in the automotive industry and is demanding ever higher levels of positioning accuracy. By teaming up with Alps Alpine, a company with an extensive track record in the automotive market, module creation expertise conforming to stringent automotive grade standards, and C-V2X system offerings, we believe the high positioning accuracy Furuno has achieved can contribute to practical application and greater sophistication of autonomous driving technology.”

The next task will be to evaluate the module’s performance, for example through demonstration testing, and bring the product to a higher degree of completion as we look ahead to sales promotion worldwide. Our aim is to begin mass production during 2023. Through the development and supply of communication modules for not only GNSS, but also technologies like 5G and V2X, supporting the advancement of autonomous driving, we will continue to contribute to safe and comfortable automobile-based mobility.

Principal Applications

Telematics control units (TCU)
V2X onboard units (OBU)

Specifications

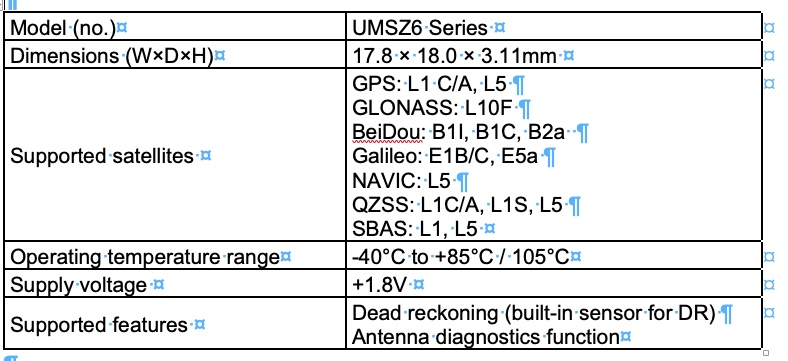

(Table)

Global Navigation Satellite Systems (GNSS): Such systems include GPS (United States), GLONASS (Russia), Galileo (Europe) and BeiDou (China). Here, Regional Navigation Satellite Systems (RNSS), QZSS (Japan) and NavIC (India) are also included.
Vehicle-to-everything (V2X): Collective term for technology connecting vehicles to something, such as vehicle-to-vehicle (V2V), vehicle-to-infrastructure (V2I) and vehicle-to-pedestrians (V2P)
Technology for minimizing the effects of noise. Noise was dramatically reduced by eliminating the effects of propagation delay using dual band configuration, with the help of a carrier phase.
Real-time kinematic (RTK) positioning: Measurement of relative position using the phase of a carrier wave. Correction data sent to a GNSS receiver from a reference station (GNSS receiver installed in a known location) is used to eliminate systematic errors included in observations. The technology seeks to determine position relative to a reference station with accuracy between several centimeters and several millimeters.
